Capabilities

The New Castle Stainless Plate mill located in New Castle, Indiana – registered to ISO 9001:2015 – provides stainless steel plate in some of the widest, thickest and longest dimensions in North America (Size Card).  Our operations focus on safety, quality, cost efficiencies, and on-time delivery performance – the hallmarks of our New Castle mill.

New Castle Stainless Plate, LLC offers one of the broadest portfolios in stainless plate in North America with tremendous size range.  Our tailor-made plate and specialty grades are available in thicknesses from 3/16″ to 6″; in widths up to 144″; and in lengths up to 420″.  The New Castle mill has a reputation for achieving exceptionally high quality plate in terms of micro-cleanliness, flatness tolerances, and surface condition.





Our key grades include the following:



  • Austenitic:
    303, 304, 304H, 304L, 304LN, 316L
    PRODEC
    317L, 317LM, 317LMN
    904L
    254SMO, 4529 (UNS N308926, N08367)
  • Duplex:
    2205 Code Plus Two ®
    LDX 2101
    2304
    2507
  • Heat Resistant:
    321/H, 347/H
    309, 309S, 309H
    310, 310S, 310H
    254MA
  • Martensitic:  410
  • Ferritic:  410S

The Mill

  • Two semi-continuous production bays with annealing, leveling, cutting, and pickling capabilities for a range of dimensions including 120″ wide

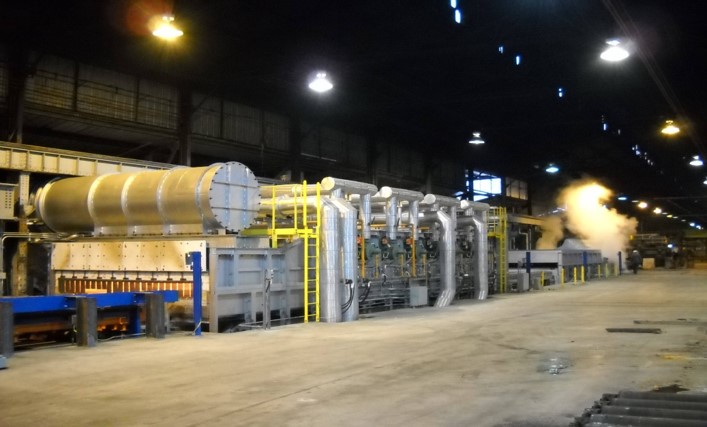

  • New ASBF line with in-line annealing, shot blasting, and flattening/leveling
  • >On-site 108″ rolling mill
  • Plasma cutting center with four plasma cutting tables
  • Seven sets of plate shears
  • Spray pickling up to 144″
  • Plate grinding designed for specialty grades
  • On-site metallurgical laboratory
  • 16,000 sq ft indoor shipping bay with a crane capacity of 70 tons
  • Environmental control upgrades for sustainability
  • Relentless focus on safety and continuous improvemenT
  • BEST IN CLASS DELIVERY PERFORMANCE
